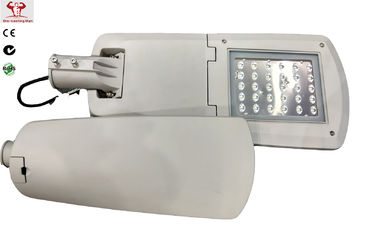

LED Street Light ZHSL-11 Series Specification
Description:
High intensity die-casting aluminum body,impact grade reaches IK09.
Tempered glass with 94% light transmittance ensures lamp reaches IK08.
Modular optical lens design,easy to improve in future.
Chip on board design makes lamps easy to install.maintain and replace.
Detechable design,use fast turn off power protecter makes lamp convenience.
With surge protector lamp can reaches Class I I(10KV)or Class II II(5-9KV)
Graph - Meridian plane light distribution Curve(ZHSL-11-50)
Spercification:
| Item NO. | ZHSL-11-30 | ZHSL-11-50 | ZHSL-11-120 |
| Electric current | 800mA | 1500mA | 2500mA |
| LED Quantity | 24pcs | 30pcs | 60pcs |
| Rated Power | 30W | 60W | 120W |
| Color Temperature | 3000K/4000K/6500K | 3000K/4000K/6500K | 3000K/4000K/6500K |
| Initial Luminous Flux | 3600LM | 7200LM | 14400LM |
| Input Voltage | AC85-265V | AC85-265V | AC85-265V |
| Frequency Range | 50-60Hz | 50-60Hz | 50-60Hz |
| Power Factor | PF>0.9 | PF>0.9 | PF>0.9 |
| Color Rendering Index | Ra>70-80 | Ra>70-80 | Ra>70-80 |
| Temperature Working Condition | -35℃ - 50℃ | -35℃ - 50℃ | -35℃ - 50℃ |
| Humidity of Working Condition | 20-90% | 20-90% | 20-90% |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP67 | IP67 | IP67 |
| Installation Pipe Diameter | Φ50-60mm | Φ50-60mm | Φ50-60mm |
| Installation Height | 10-12m | 10-12m | 10-12m |
| Packing size | 565*265*161.4 mm | 635*175*305 mm | 795*210*365 mm |
